LM6UU Linear Ball Bushing Bearings 6x12x19 Sealed
01 Overview
Linear Ball Bushings Item LM6UU Works with 6mm Shafts
Model: LM6UU- ID sizes range from 5 mm to 50 mm
- Static Load Capacities up to 7900 N (1700 lb)
- Dynamic Load Capacities up to 3800 N (850 lb)
- Low Coefficient of Friction
- Heat treated alloy steel shell
- Resin retainer for reduced noise
- Good temperature range: -20/+80C (-4/+176F)
- Double Seals included standard – no additional cost!

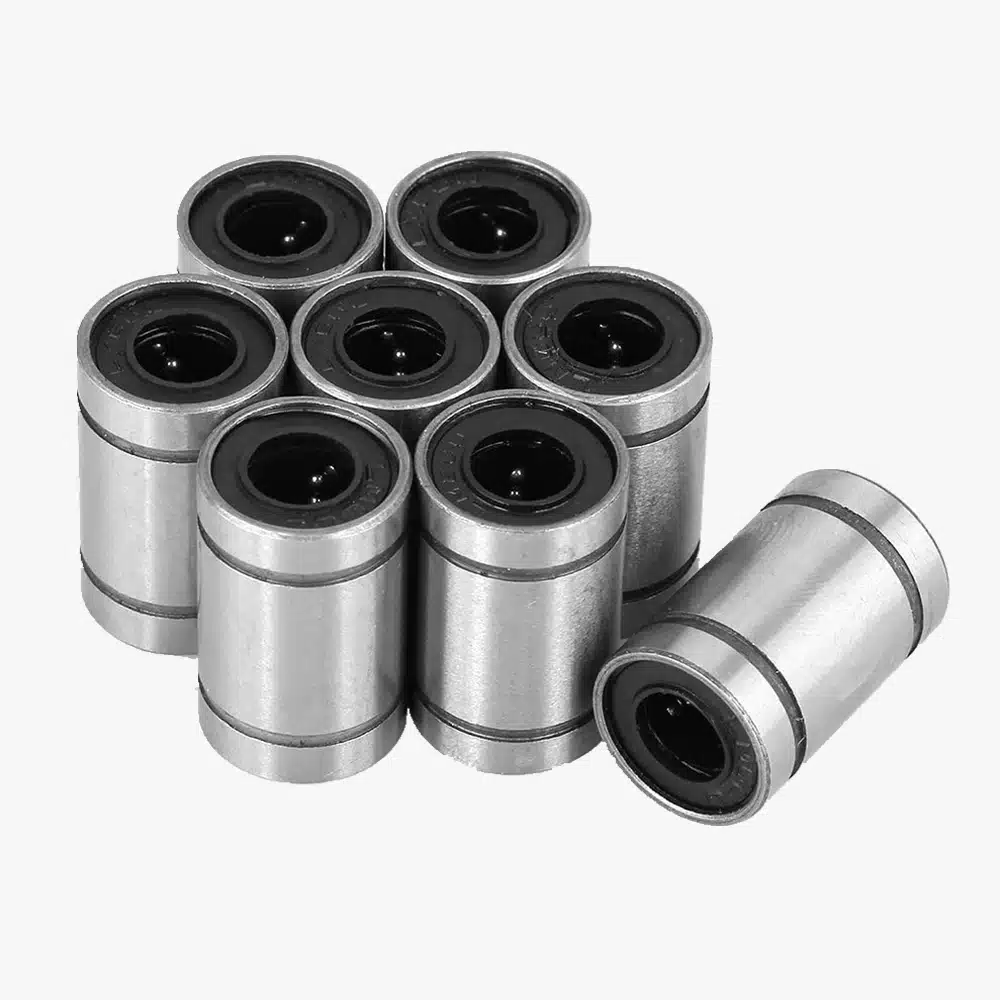

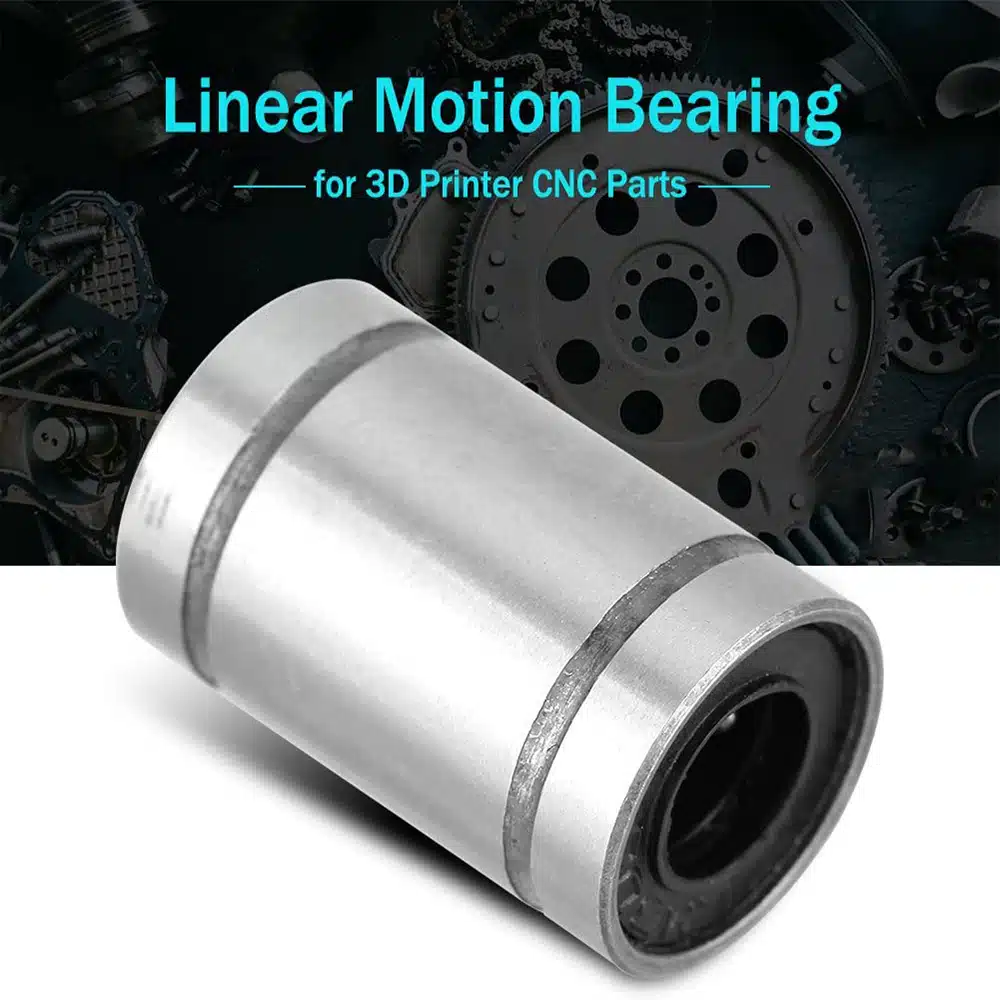

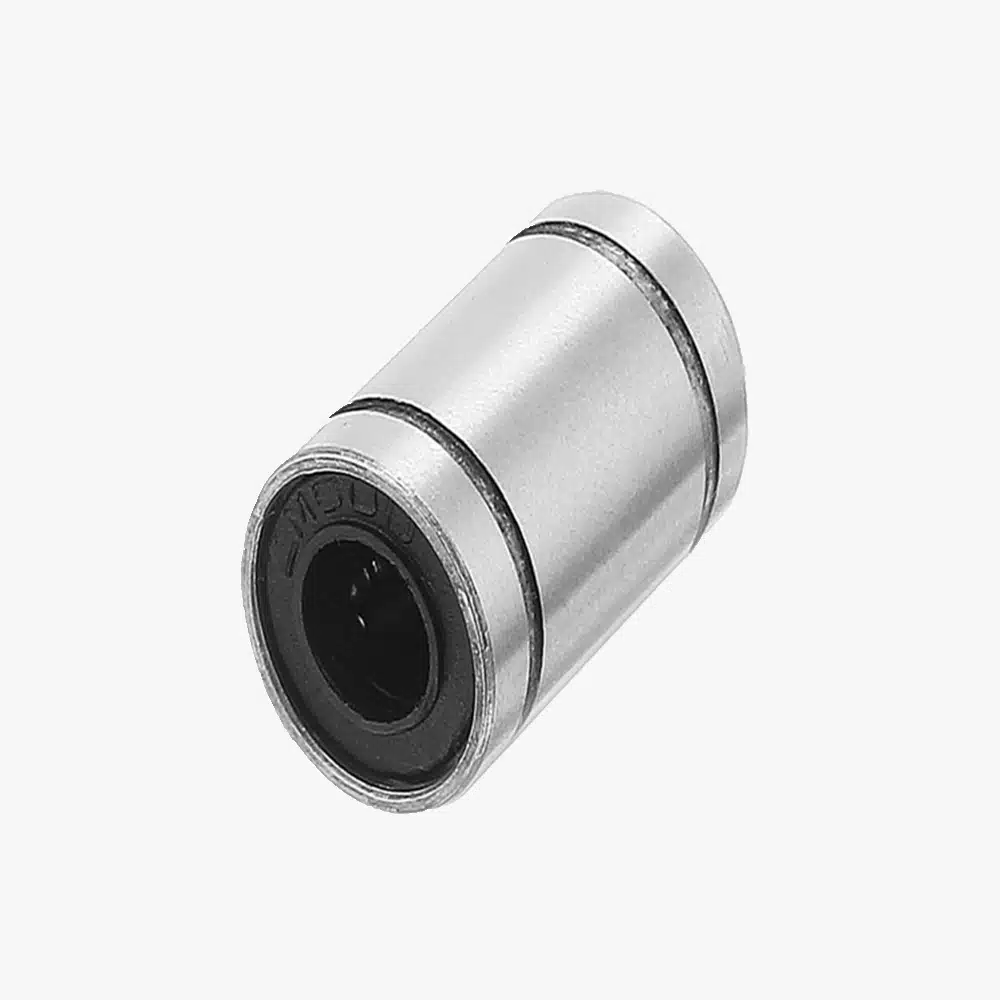

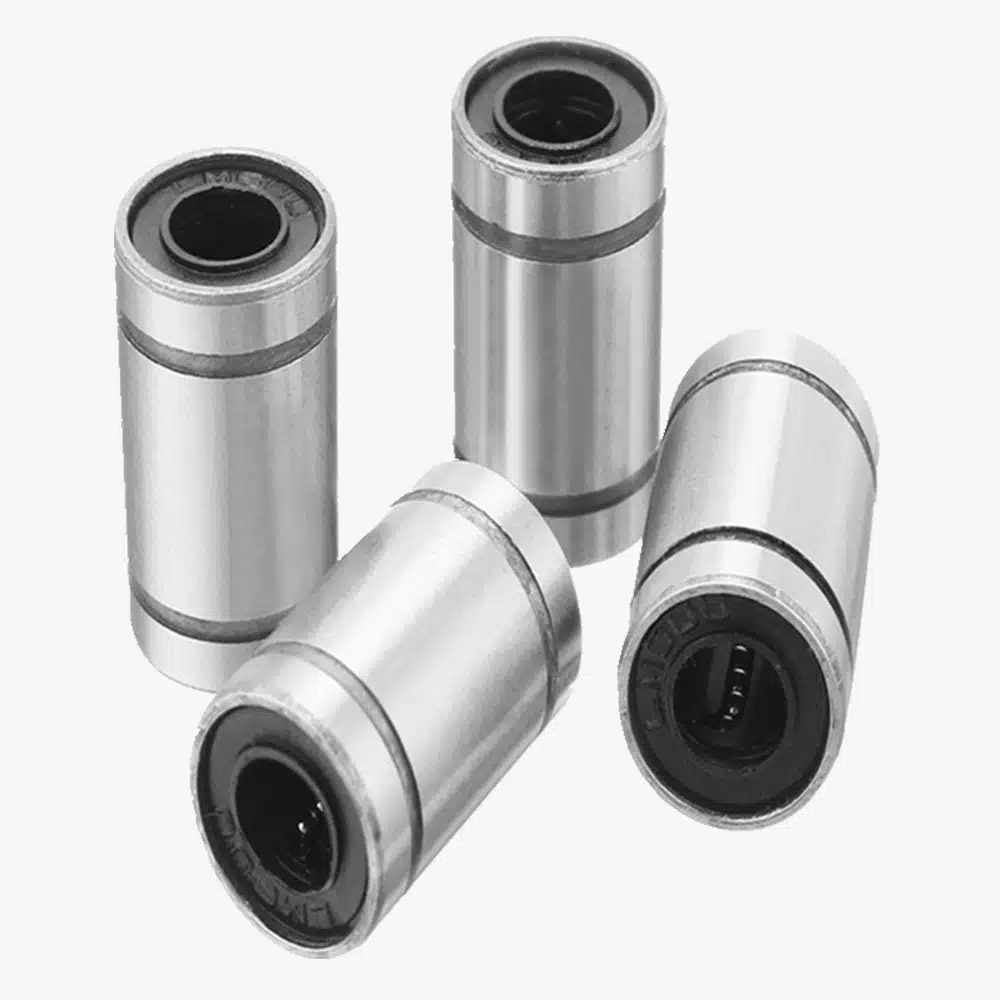

02 Photo Gallery
03 Details
Description
LM6UU Linear Ball Bushing Bearing
Key Features
LM6UU is a Precision Accuracy Grade Linear Bushing with a Built-In Synthetics Resin Retainer and is sealed on both sides with Rubber Seals. LM6UU features a chrome steel jacket and a resin retainer which reduces noise during operation and allows for smooth, precise linear motion. Our Linear Motion Bearings are pre-lubricated with Light Oil, ensuring they are ready for immediate use upon delivery.
Applications / Industries
LM6UU Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotics, Mining, Agricultural Machinery, Automation Machinery, among others.
Interchange Numbers
SM6GUU, LM6AUU, LBD6UU, LB6NYDD, N-6VUU, LM61219UU, L6BUU, TB-6UU, LMH6UU
Simplify Specifications
| Nominal Shaft Diameter | 6 |
| Nylon Cage | |
| Standard Type | LM6UU |
| Number of Steel Ball Rows | 4 |
| Weight (g) | 7.6 |
| Gap Adjustment Type | LM6UU-AJ |
| Number of Steel Ball Rows | 4 |
| Weight (g) | 7.5 |
| Open Type | — |
| Number of Steel Ball Rows | — |
| Weight (g) | — |

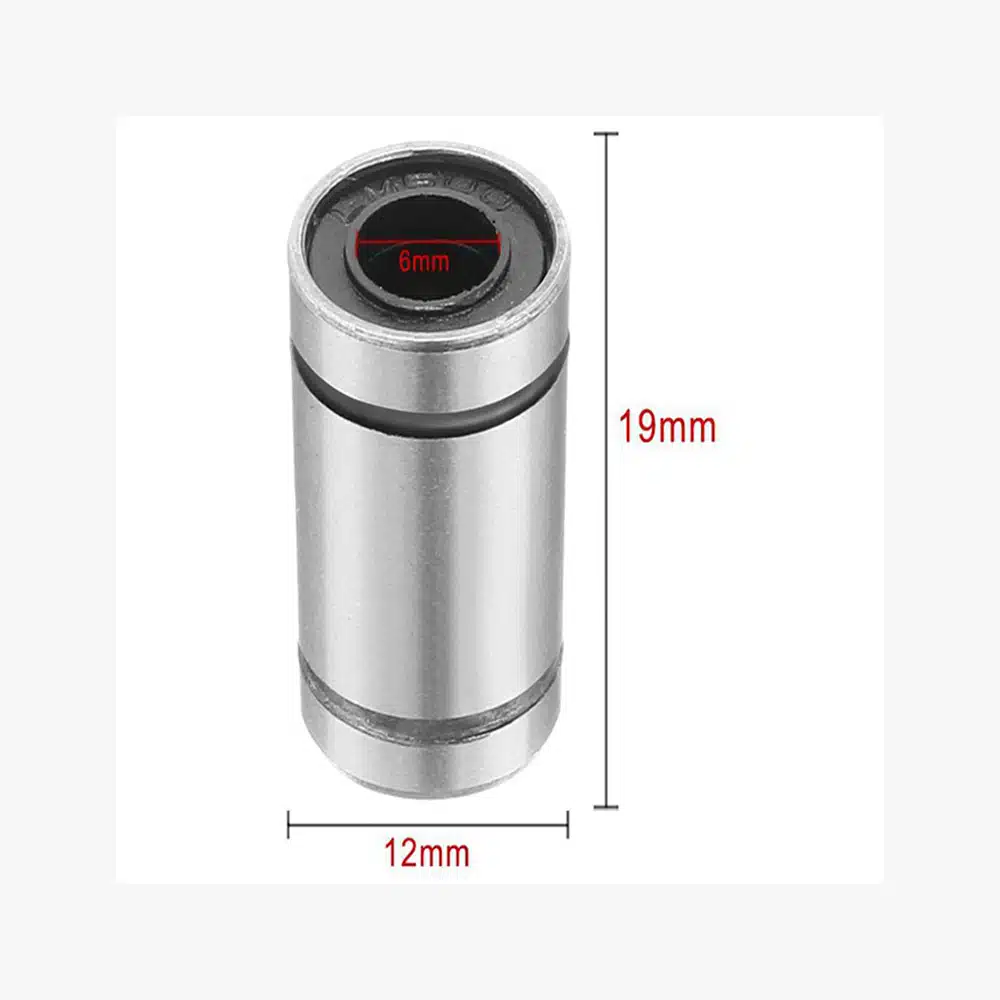

| Main Dimensions and Tolerances | |
| dr mm | 6 |
| Dr Tolerance Precision μ m | 0/-6 |
| Dr Tolerance Normal μ m | 0/-9 |
| D mm | 12 |
| D Tolerance μ m | 0/-11 |
| L mm | 19 |
| L Tolerance μ m | 0/-200 |
| B mm | 13.5 |
| B Tolerance μ m | 0/-200 |
| W mm | 1.1 |
| D1 mm | 11.5 |
| h mm | 1 |
| h1 mm | — |
| θ | — |
| Eccentric（ μ m ) | |
| Precise | 8 |
| Ordinary | 12 |
| Maximum Radial Clearance μ m | -3 |
| Rated load | |
| Dynamic Load Cr N | 206 |
| Static Load Cor N | 265 |
